Rig-Up and Installation Sequences
ICON’s engineers work collaboratively with clients to develop sequence drawings and procedures for handling and installing equipment on their offshore facility.
Successfully rigging up and installing equipment offshore in confined spaces requires years of extensive experience with operational drilling rigs

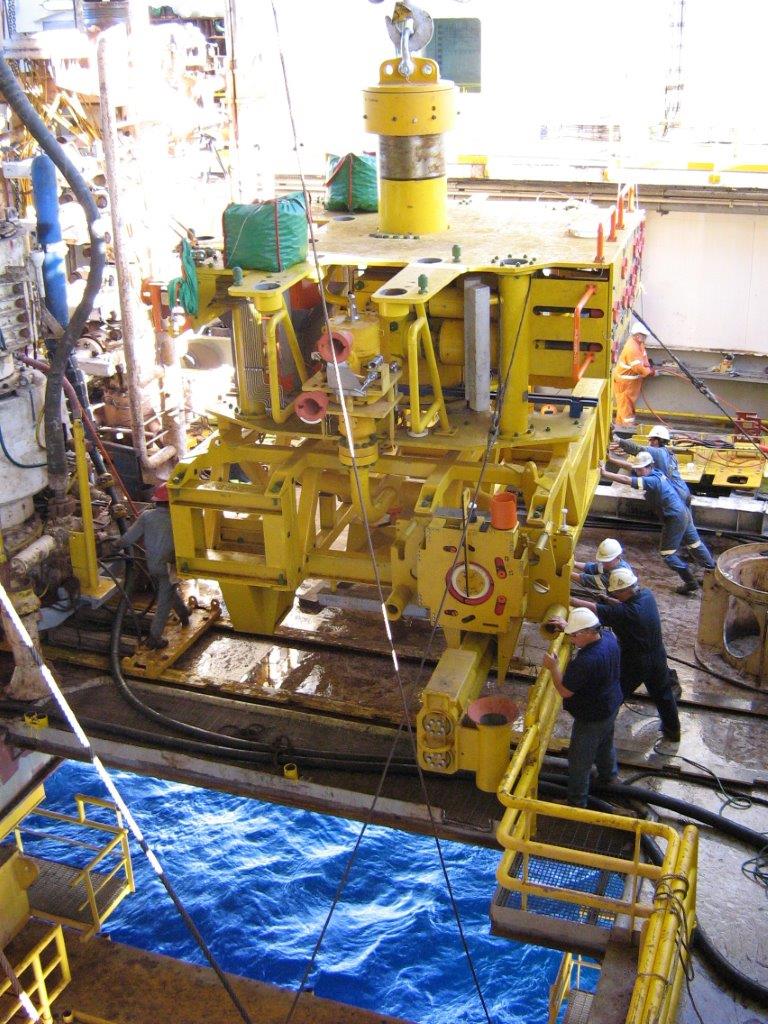

Whether it be rigging up drill string equipment into the derrick, or handling trees into and through the moonpool for subsea deployment, we can develop 2D sequence drawings which enable all shore based personnel and rig crew to understand the operation.
3D technology, including laser scanning is also often used by our engineering team to perform checks to ensure there are no clashes offshore when operations are being performed.
