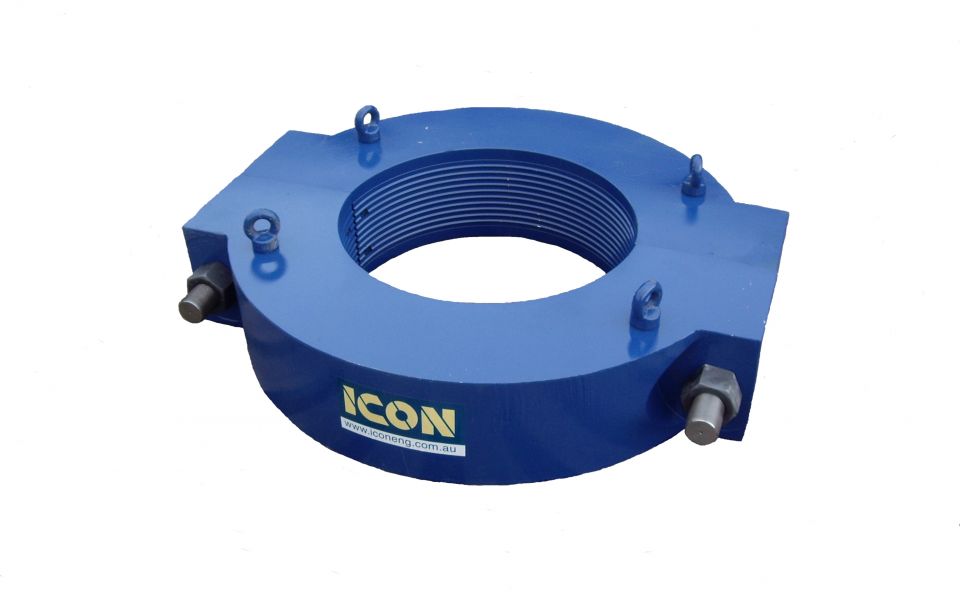

Conductor Clamp: Push Type Gripper Clamp

ICON Conductor Clamps are designed to support all standard size drilling conductors from 9 5/8” to a maximum size of 36” in conjunction with the ICON T-series Push Type Conductor Tensioner Systems. They will also work with  tensioners from other manufacturers.

The Conductor Gripper Clamp can grip the conductor in any position along its length. This avoids the need to accurately determine the space out and setting depth of the conductor.

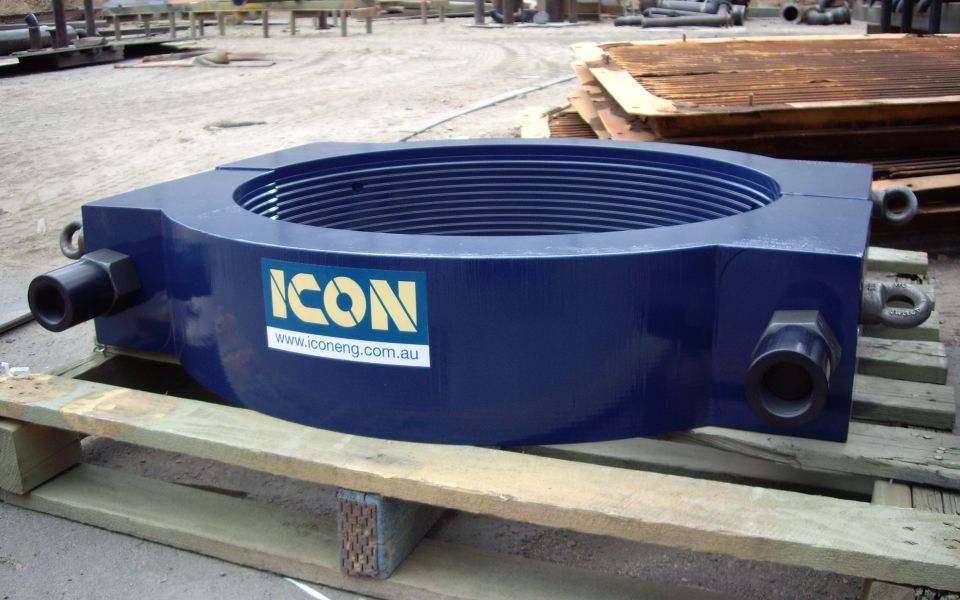

ICON Gripper Type Conductor Clamp
Model Conductor Diameter Load Capacity Dimensions
Inch mm Tonnes L x W x H (mm)
G36 36" 914 230 1362 x 1136 x 300
G30 30" 762 230 1236 x 1010 x 200
G22 22" 559 230 1006 x 780 x 200
G20 20" 508 227 956 x 730 x 200
G1338 13 3/8" 340 150 787 x 561 x 200
G958 9 5/8" 244 150 580 x 551 x 200
