Murphy West Patricia Field Development WP-IA Platform: Jacket Installation, Malaysia

After the success of the WP-PA jacket & topsides, ICON Engineering was again commissioned to install the West Patricia WP-IA jacket.

WP-IA was the second of a planned series of jackup rig installable platforms to be used in the development of the West Patricia field. The 360 tonne jacket was lifted horizontally using the jackup rig “Atwood Beacon”.

WP-IA was the second of a planned series of jackup rig installable platforms to be used in the development of the West Patricia field. Similar to WP-PA, the WP-IA jacket has an additional two external vertical piles which double as well conductors.

The jacket was fabricated at Lumut by HL Engineering.

The 360 tonne jacket was lifted horizontally using the jackup rig “Atwood Beacon”.

Installing West Patricia jacket.jpg

Installing the West Patricia jacket



It was then upended and lowered to the seabed. The jacket was secured to the rig to ensure it landed vertically and to support it during piling.

Securing of Jacket to Conductor Deck Prior to Lowering to Seabed.jpg

Securing the jacket to the conductor deck prior to lowering to seabed



The water injection wells were then pre-drilled and completed before the topsides installation which was again performed using the ICON designed & operated float-over spread (refer separate project sheet).

Most of the installation procedures, equipment and rigging were able to be reused from the WP-PA jacket installation campaign, thereby realising substantial savings for the Client.

The rig install method again allowed the jacket installation and drilling to be performed significantly in advance of the topsides procurement and fabrication. Conventional installation by barge would have required two mobilisations of the heavy lift barge to achieve the same schedule.

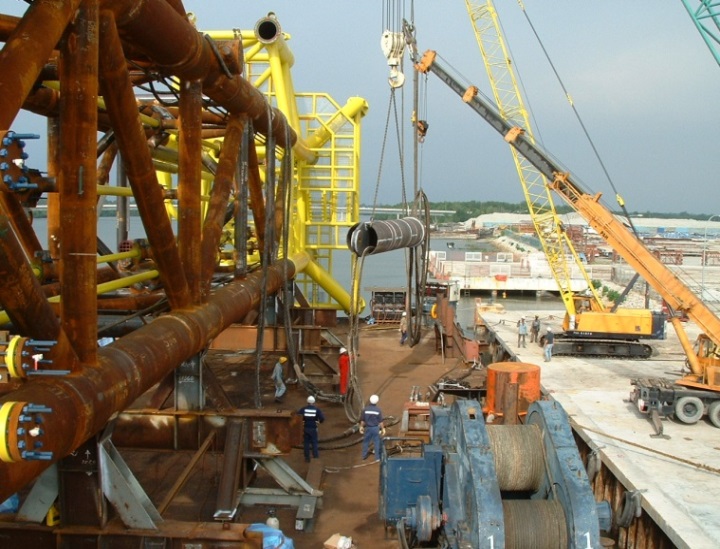

Seafastening the WP-IA Jacket & Fitting of lift rigging.jpg

Seafastening the jacket and fitting the lift rigging



ICON's involvement included responsibility for installation engineering and site execution of the installation work.


Platform Data

Water depth                   45 m

Jacket Lift Weight           360 t

Topsides Weight             700 t

Legs                              4 vertical

Piles                              6 x 914mm diam. Vertical

Completed West Patricia platform.jpg

The completed West Patricia WP-IA platform
