Case Study — Originally published 17 September 2013
This article revisits ICON’s conductor tensioner design, one of the company’s most widely adopted pieces of drilling equipment, and has been updated for accuracy ahead of republishing.
ICON Engineering is recognised internationally as an innovator in Drive Pipe Conductor Tensioner design. As of this article’s original 2013 publication, ICON’s conductor clamps were installed on an estimated 20% of the jack-up drilling rigs then in service worldwide — a figure that should be reconfirmed with ICON’s Equipment Solutions team before this piece goes live again, since installed-base numbers will have moved on in the years since.
A tensioner does a deceptively simple job: it keeps the drilling conductor under constant, controlled tension as a jack-up rig moves with wave and current loading. Get it wrong and the result is conductor buckling, excessive lateral deflection, or vortex-induced vibration — any of which can force operators onto larger, heavier, and more expensive conductor sizes than the well design actually needs.
Why Conductor Tensioner Design Matters on a Jack-Up Rig

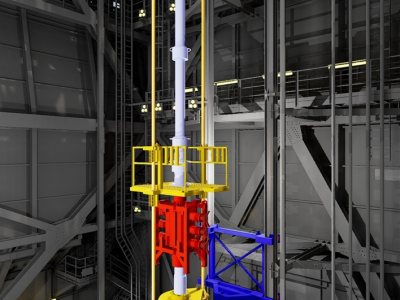

ICON’s Conductor Tensioners are built to support the full standard range of drilling conductors, from 9 3/8″ up to 36″, from a dedicated tension deck on the rig. Applying constant, pre-set tension does three things at once: it prevents conductor buckling, controls lateral deflection, and reduces vortex-induced vibration under wave and current loading — allowing operators to specify smaller, lighter conductor sizes than they otherwise could.
The unit is designed to let the conductor support move vertically with rig heave while holding the nominally pre-set tension steady, and to provide the lateral support the top of the conductor needs to stay stable throughout drilling operations.
ICON’s Broader Equipment Solutions Capability
This equipment sits within ICON’s wider Conductor Tensioning and Equipment Solutions capability — engineering, supplying, and supporting purpose-built oilfield equipment for drilling and completions work, available for purchase or rental. For a technical reference point on related well components, see the IADC Lexicon’s entry on conductor casing.
Contact ICON for current availability and specifications for purchase or rental.
